    Wireless Transmission Drain Cleaning Camera With Long Time Battery

    Ask Lasest Price
    Brand Name : TRIO-VISION
    Model Number : NC-150
    Supply Ability : 100 units per year
    Delivery Time : 4-8 weeks
    • Product Details
    • Company Profile

    Wireless Transmission Drain Cleaning Camera With Long Time Battery

    Wireless Video Inspection Jetting Camera - Sewer Pipe Inspection / Cleaning

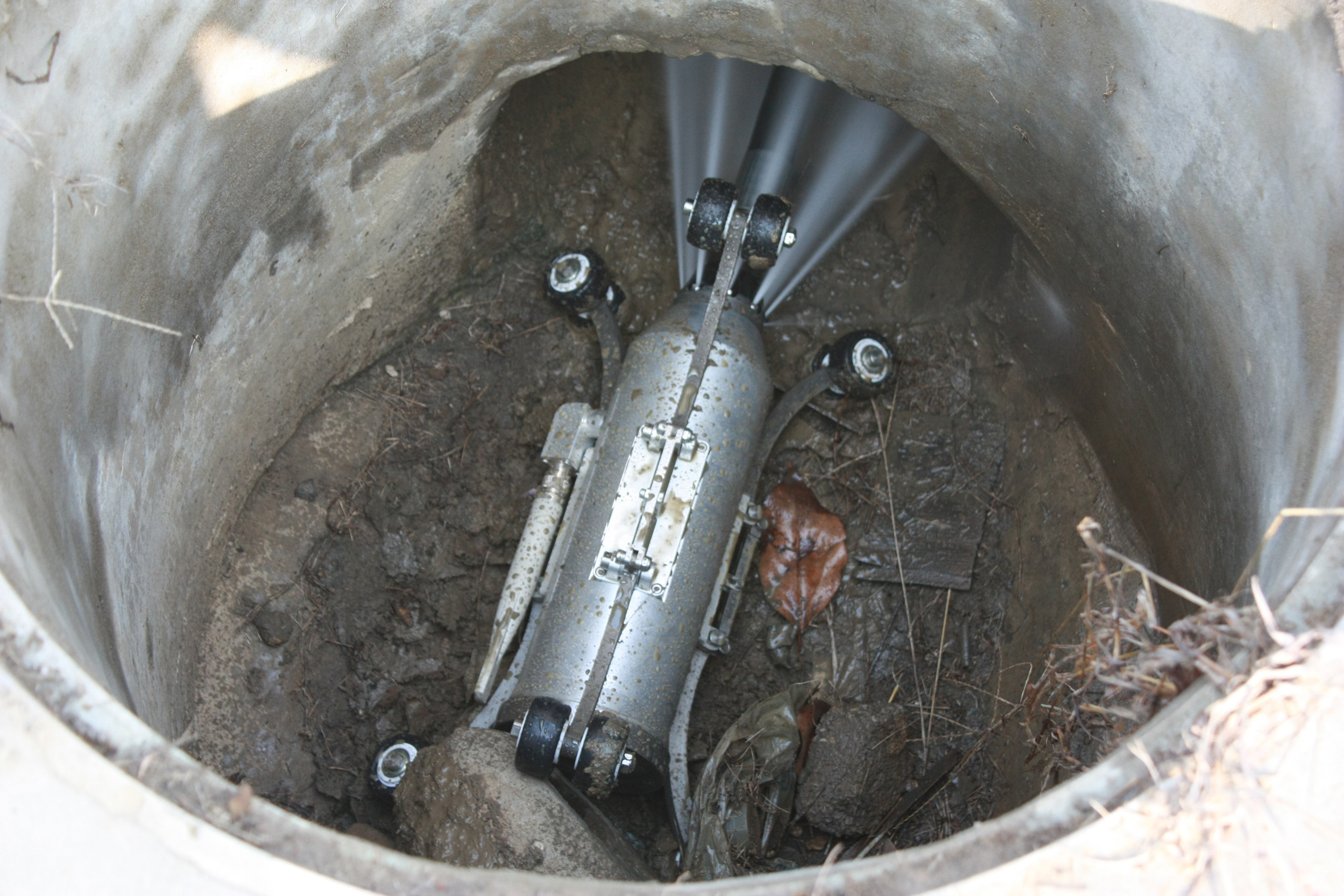

    Wireless Video Inspection Jetting Camera is for both cleaning and inspection of sewer/drainage pipes, it works with high pressure jetting truck, using the high pressure water to drive the nozzle move in the pipe.


    Wireless Transmission Drain Cleaning Camera With Long Time BatteryWireless Transmission Drain Cleaning Camera With Long Time Battery


    Features:

    1. wireless tranmission from pipe to ground

    2. SD card storage

    3. LED lights

    4. high pressure

    5. waterproof: IP68


    System working diagram:

    Wireless Transmission Drain Cleaning Camera With Long Time Battery


    Standard Configuration:Optional parts:
    1,spray nozzle1,long time battery
    2,NC-Z receiver2,un-adjustable but removable support for 300mm pipe diameter
    3,10m cable
    3, un-adjustable but removable support for 600mm pipe diameter
    4,hand-held control unit

    Main components:

    Wireless Transmission Drain Cleaning Camera With Long Time Battery


    Parts and Components:

    Wireless Transmission Drain Cleaning Camera With Long Time Battery

    Technical Parameter:


    Nozzle UnitControl Unit
    Image sensor: white balance
    Resolution:480k pixel
    Light : 2500Lm
    Battery: 3hrs working time
    Inspection length: 200m
    Pipe diameter: 150-600mm
    Water pressure: 20mpa
    Flow: 210L/min
    Waterproof: IP68
    Weight: 10KG
    Screen: 5.6"LCD, visible under strong light
    Video storage, review and image capture functions available
    On site audio input, audio storage and review functions
    Power Supply: embedded battery
    Storage Method: SD card or USB disc or portable hard disc
    Weight:2Kg
    Water and Dust Proof:IP63
    Dimensions:220*140*45mm
    Wireless Transmission Drain Cleaning Camera With Long Time BatteryWireless Transmission Drain Cleaning Camera With Long Time Battery
