    Wireless Drain Cleaning Camera Easy Operation 20Mpa Water Pressure

    Ask Lasest Price
    Brand Name : TRIO-VISION
    Model Number : NC-150
    Supply Ability : 100 units per year
    Delivery Time : 4-8 weeks
    • Product Details
    • Company Profile

    Wireless Drain Cleaning Camera Easy Operation 20Mpa Water Pressure

    Wireless Drainage Pipe Inspection Jetting Video Camera NC-150


    TVS-NC150 wireless jettiing camera is mainly used for inspection of urban drainage network, equipped with high pressure cleaning truck. The nozzle moves in the pipe by the high pressure of cleaning truck, do cleaning and inspection job at the same time. Transmission without cable, easy operation, safety and relable.


    Wireless Drain Cleaning Camera Easy Operation 20Mpa Water PressureWireless Drain Cleaning Camera Easy Operation 20Mpa Water Pressure


    System working diagram:

    Wireless Drain Cleaning Camera Easy Operation 20Mpa Water Pressure


    Standard Configuration:Optional parts:
    1,spray nozzle1,carbon fiber pole
    2,NC-Z receiver2,un-adjustable but removable support for 300mm pipe diameter
    3,10m cable
    3, un-adjustable but removable support for 600mm pipe diameter
    4,hand-held control unit

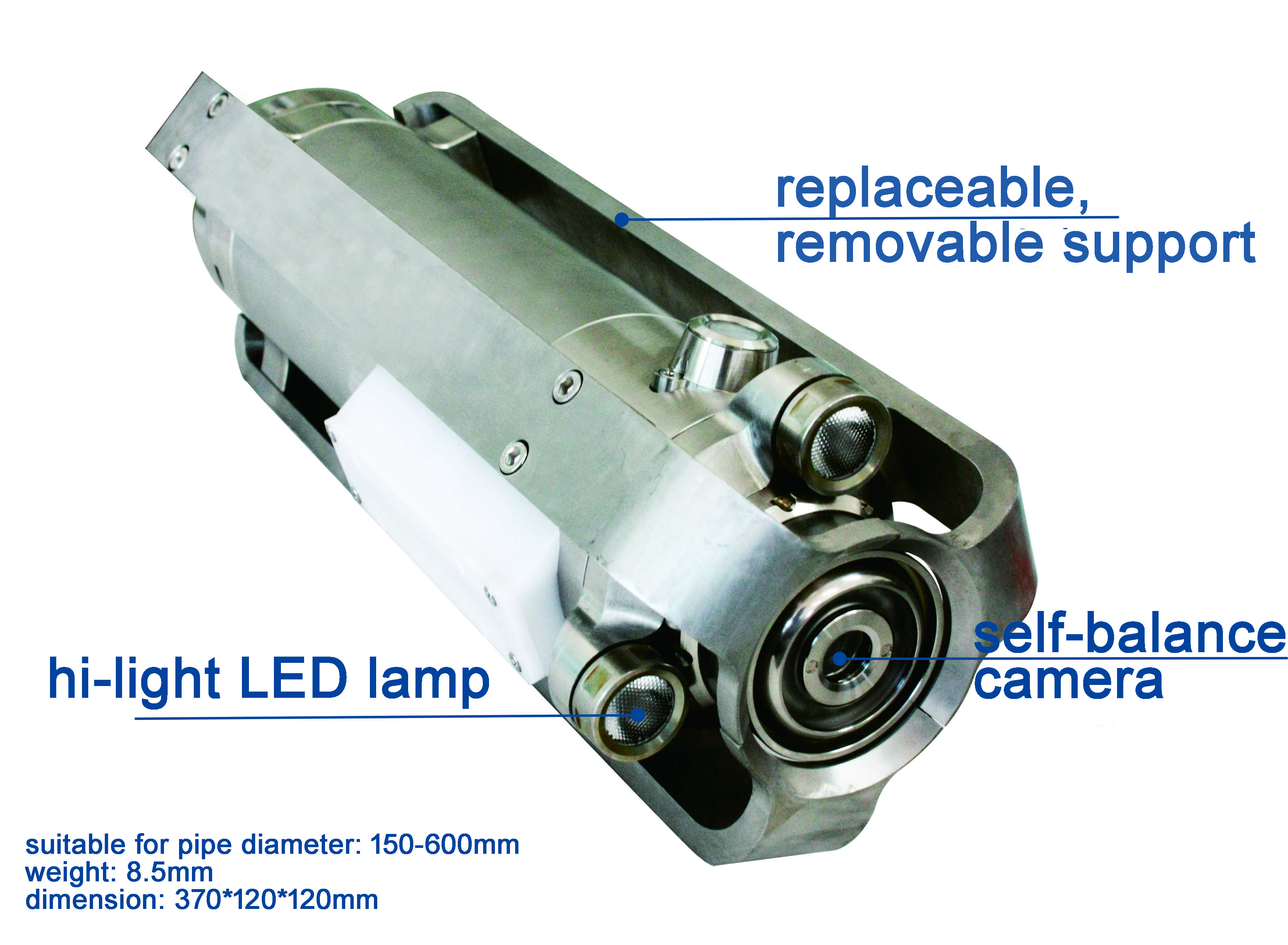

    Main components:

    Wireless Drain Cleaning Camera Easy Operation 20Mpa Water Pressure


    Parts and Components:

    Wireless Drain Cleaning Camera Easy Operation 20Mpa Water Pressure

    Technical Parameter:


    Nozzle UnitControl Unit
    Image sensor: white balance
    Resolution:480k pixel
    Light : 2500Lm
    Battery: 3hrs working time
    Inspection length: 200m
    Pipe diameter: 150-600mm
    Water pressure: 20mpa
    Flow: 210L/min
    Waterproof: IP68
    Weight: 10KG
    Screen: 5.6"LCD, visible under strong light
    Video storage, review and image capture functions available
    On site audio input, audio storage and review functions
    Power Supply: embedded battery
    Storage Method: SD card or USB disc or portable hard disc
    Weight:2Kg
    Water and Dust Proof:IP63
    Dimensions:220*140*45mm
