    Lateral Launch Sewer/Drain Pipe Inspection Branch Line Inspection Van Installed Robotic Crawler

    Lateral launch sewer/drain pipe inspection branch line inspection van installed robotic crawler is used for diameter from 150-1000mm in mainlines. It is the first system using 3 HD cameras: main camera, rear camera and lateral camera are all 1080P, the resolution is 2 megapixels.


    Features:

    1. Used for mainline and lateral inspection

    2. 3 HD cameras

    3. Remote control

    4. Van installed system


    System Configuration

    Standard ConfigurationOptional Parts
    Lateral crawlerRemote controller
    Mainline cable reel
    Lateral cable reel
    Desk controller

    Technical Parameter

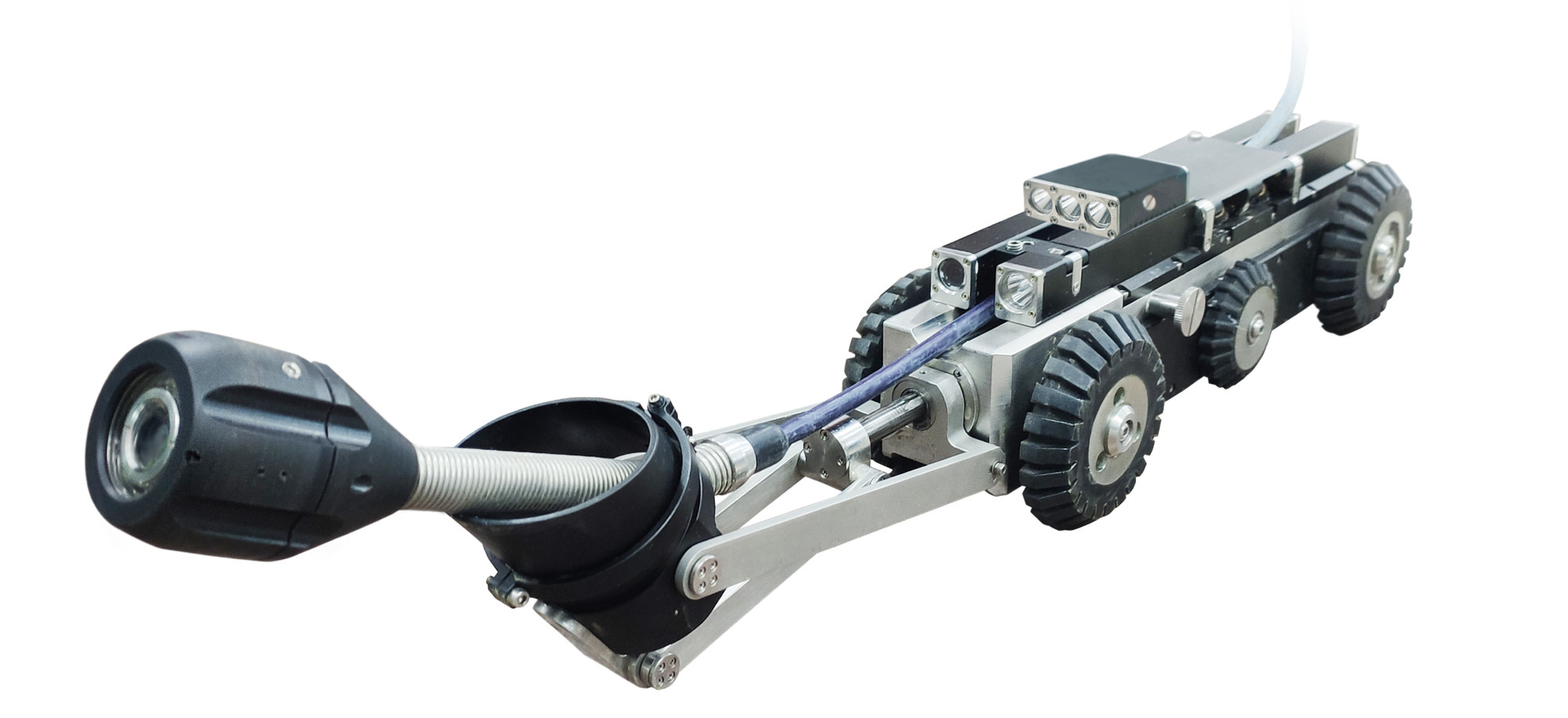

    Lateral crawlerLateral Launch Sewer/Drain Pipe Inspection Branch Line Inspection Van Installed Robotic Crawler

    1. Min inspection diameter: 150mm

    2. Six wheel drive

    3. Cable feeding speed: 3m/min

    4. Camera cup axial rotation: 180°, vertical 90°

    5. Main camera: 2 megapixels, fixed focus camera

    6. Rear camera resolution: 1980*1080P, diameter 50mm

    7. Sonde location: 640Hz, 8kHz, 33kHz

    7. Dimension: 900*140*130mm

    8. Weight: 16kg

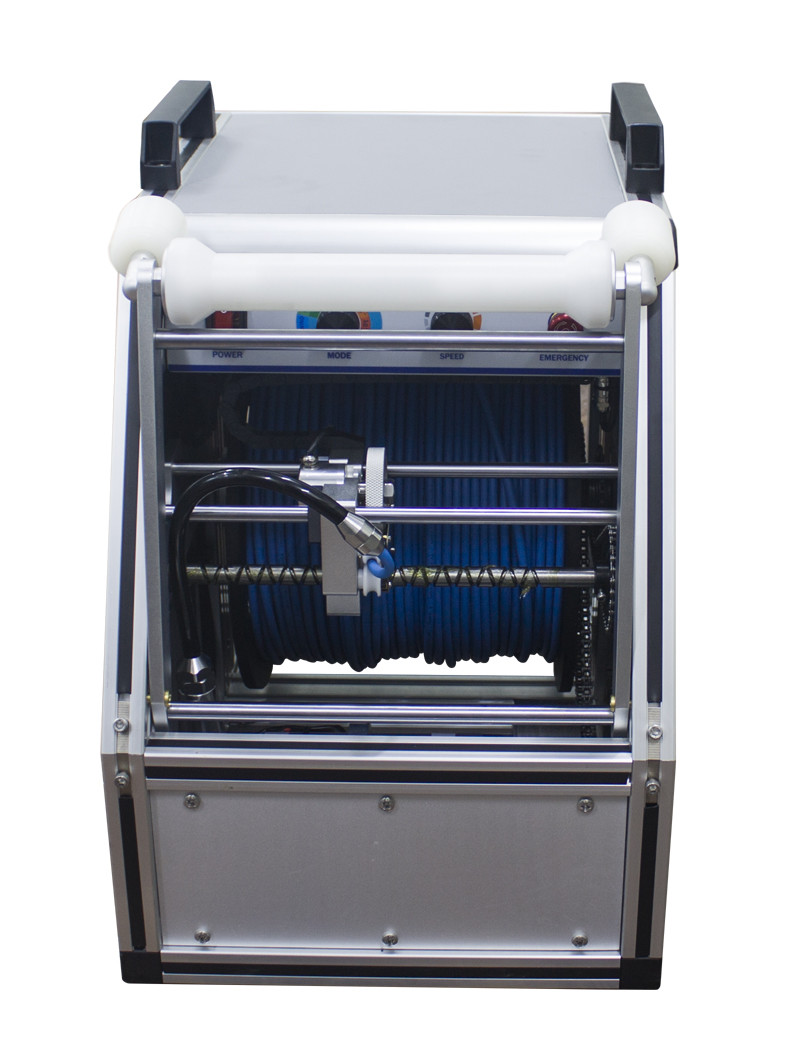

    Mainline cable reelLateral Launch Sewer/Drain Pipe Inspection Branch Line Inspection Van Installed Robotic Crawler

    1. Cable length: 200m

    2. Kevar cable with tensile strength: 300KG

    3. Input power: AC100V-240V

    4. Dimension: 560*390*570mm

    5. Weight: 58kg

    Lateral cable reel


    Lateral Launch Sewer/Drain Pipe Inspection Branch Line Inspection Van Installed Robotic Crawler

    1. Mainline cable length 200m, lateral cable length 45m

    2. Meter counter, emergency stop

    3. Automatic cable retrieving

    4. Kevlar cable with tensile strength 300kg

    5. Input power: AC110V-240V

    6. Dimension: 820*350*700mm

    7. Weight: 58kg

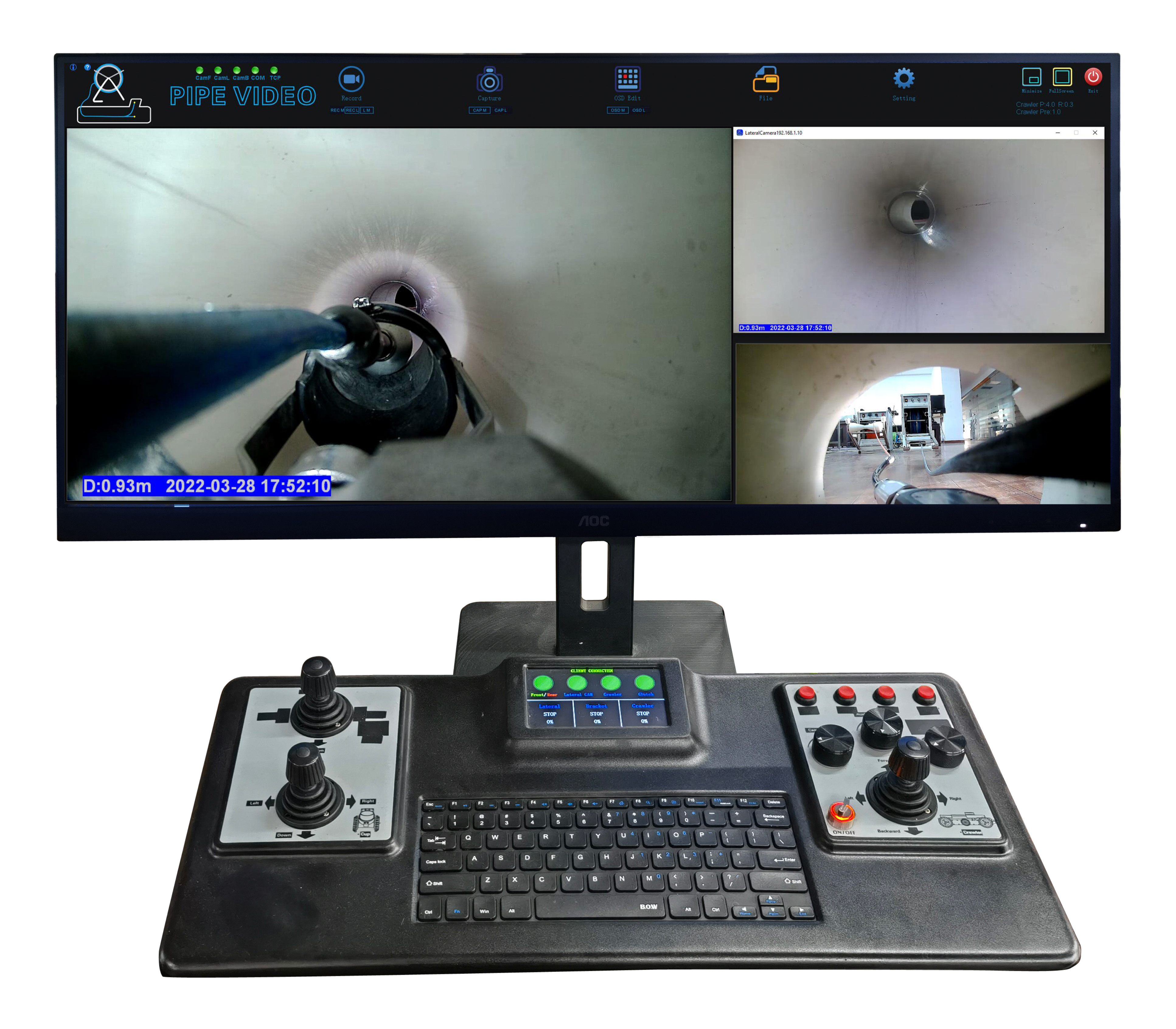

    Desk controllerLateral Launch Sewer/Drain Pipe Inspection Branch Line Inspection Van Installed Robotic Crawler

    1. Control the crawler movement, lateral camera sending and taking back.

    2. LCD displays the status of pipe crawler(speed, clutch, forward, backward, left turn, right turn)

    3. Keyboard input function

    4. Dimension: 620*300*110mm

    5. Weight: 3kg


    OPTIONAL PARTS


    Remote controller

    Lateral Launch Sewer/Drain Pipe Inspection Branch Line Inspection Van Installed Robotic Crawler

    RF data transmission module available for remote control

    Dimension: 260*110*200mm

    Weight: 1.8kg
