Remote Computer Control Spiral Robotic Sewer/Water Pipe Inspection Camera System In Mud

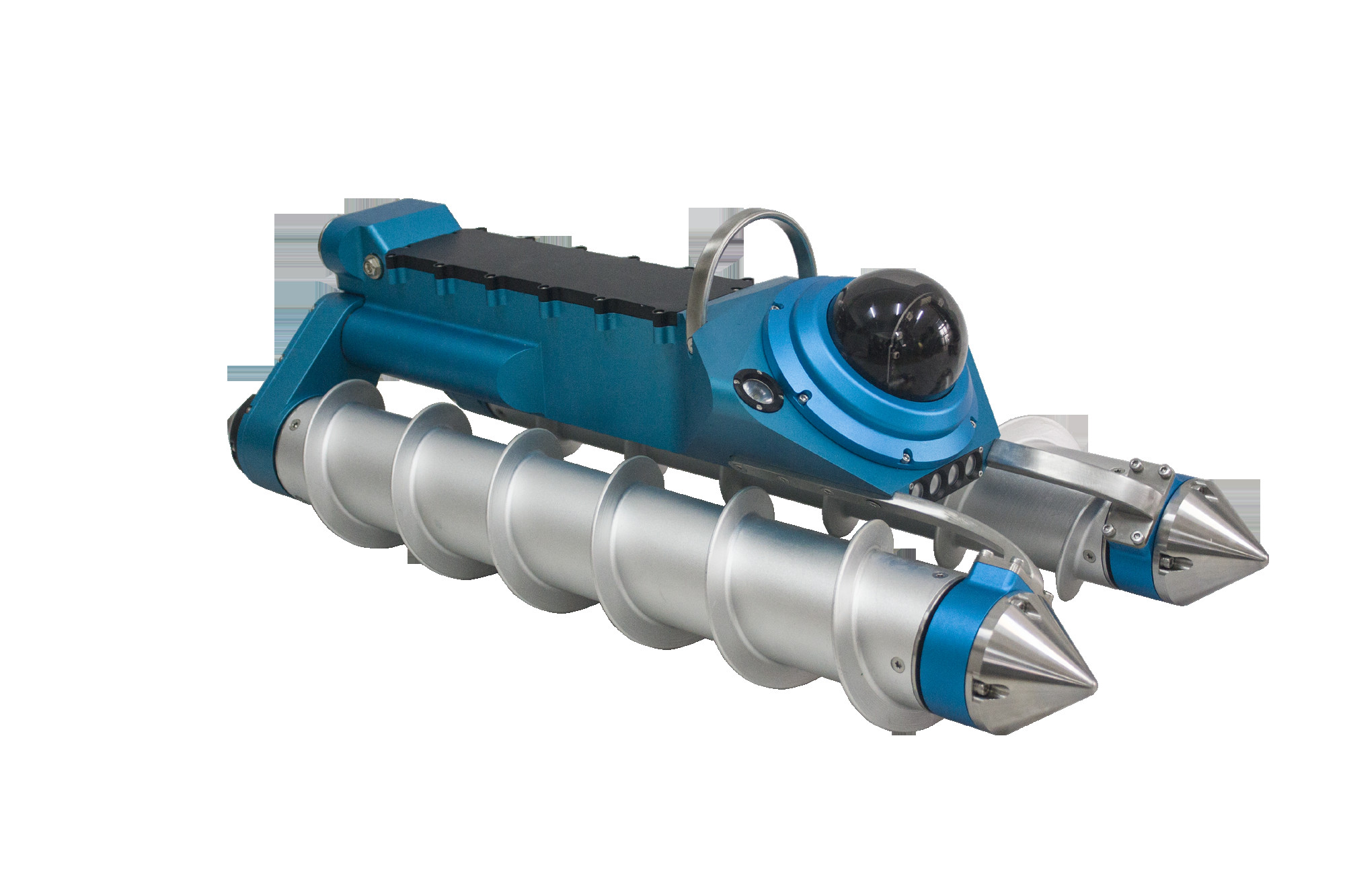

Lizard small size amphibious CCTV and sonar sewer/water pipe inspection camera system adopts spiral propulsion structure, which is suitable for working in various complex environments such as water surface, mud, swamp and so on. Equipped with 360° pan-tilt-zoom camera, it can inspect with high-definition images. The high brightness LED array is suitable for large pipes, canals and box culverts. It can be equipped with sonar probe to display images underwater surface, thus detecting the cross-section and silt depth under water pipes and canals over-water at the same time.

Features:

1. Used for both water and non-water pipes

2. 360 degree pan-tilt-camera

3. Sonar inspection available

4. Good for long distance

System Configuration

Technical Parameter

Lizard robot		1. suitable for pipe DN300 and above 2. HD front and rear camera 3. Spiral propulsion, overwater, mud, silt, swamp and other complex fields 4. 6 sets high-intensity LED, inspection especially for large culvert
Manual cable reel		1. Base station architecture, network cable, WIFI, special line and other signal transmission modes 2. Video signal and control command, lossless and delay free transmission 3. Tensile floating cable, auto winding and traversing 4. Built-in battery, and removable 5. Dimension: 510*400*450mm 6. Weight: 26.5kg 7. Cable stanard length: 200m, 300m optional
Remote controller		1. Simple, convenient and flexible operation 2. Self diagonosis function, status visible 3. Robot walking posture display 4. Wireless/wired dual working mode 5. Compass indicates the direction 6. Weight 0.5kg
Software		Operation software to control the robot and camera movements.

OPTIONAL PARTS

Founded in 2006, Wuhan Trio-Vision Technology Co., Ltd. (hereinafter called "TVS") Is the exploiter in Chinese underground pipe inspection equipment industry. The company has been specialized in developing, manufacturing, sales and technology service of urban drainage pipe inspection and online inspection. With rapid development in recent years, the company has been the celebrated enterprise in underground pipe inspection product developing and manufacturing in both domestic and overseas.

Currently we have distributors in USA, UK, and The Netherlands.

TVS is always aiming at advanced inspection technology in the world, the company succesively pushed out portable pipe camera (manhole camera) in 2006, pipe robot (CCTV pipe inspection system) in 2008, and pipe sonar inspection system in 2010, TVS also applied all kinds of patents, and software copyright. As the exploiter of drainage pipe inspection technology in China, TVS is devoted to localization of underground inspection equipments, providing reliable CCTV pipe inspection equipment, pipe maintenance vehicle, pipe flow monitoring system and correspondent services, and supplying the customer one-stop complete equipment solution.

TVS is strictly with product quality, performance, carries out the theory of "concentrations achieves professions, innovation wins the preemptive opportunities", concentrate developing, manufacturing, and sales into complete, the company annually manufactured and sold over 200 units on three series inspection products, the sales network is all over the country, and get highly appraise from the customer. TVS has its own import and export business license, its products sold far to America, UK, Germany, Australia, East Asia etc. At the same time, the company has set up a complete customer service system, owned its professional customer service team to guarantee the equipment use normally.
