3D Image Ground Pipe Penetrating Radar 300m Cable 360 Degree

Pipe Penetrating Radar contains two crawler system, which makes the inspection range from 150mm to 2000mm pipe diameter, the TVS-150 small crawler is used for 150-600mm dia. pipes, and TVS-800 large crawler is used for 250-2000mm dia. pipe, the camera can work on both crawlers and aumatic cable drum make the work easily.

Pipe Penetrating Radar Features:

1. Fish-eye camera, 360 degree view of pipe

2. 2D exploded pipe view

3. 3D image and pipe module

4. 92pcs LED lamps

5. Brightless adjustable

Technical Parameter of Pipe Penetrating Radar

Control Unit MK3		Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved. Camera position, elevator position in Graphs Inclination report in site. System status, work parameter can be query.

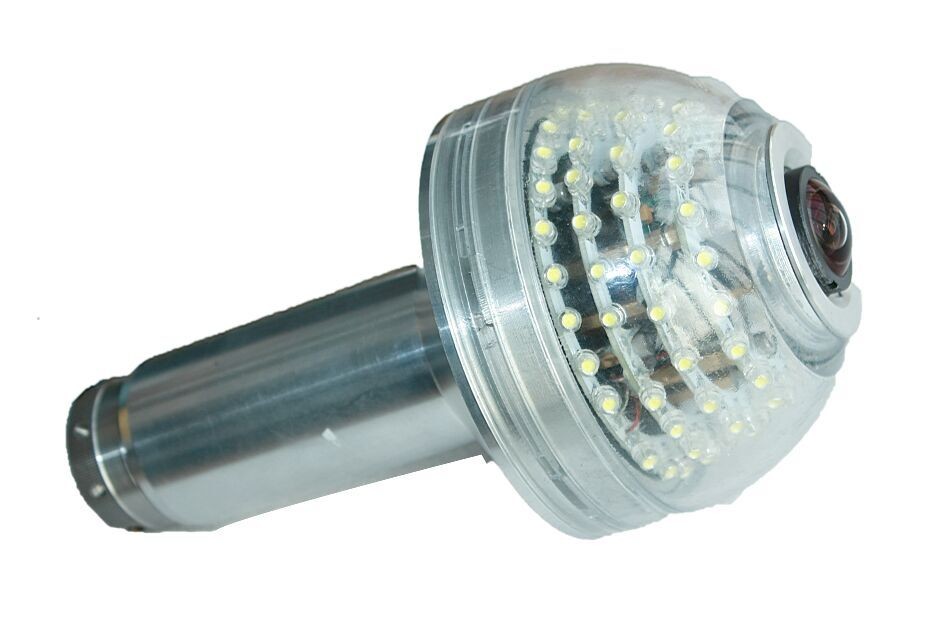

Fish-eye Camera JT-360		view angle: 0-360 angle resolution: 3 megapixel 92pcs lamps, 200lm sensitivity: 0.3Lux interface: connect with crawler directly 2D pipe explored analysis working temperature: -20ºC~65ºC waterproof: IP68

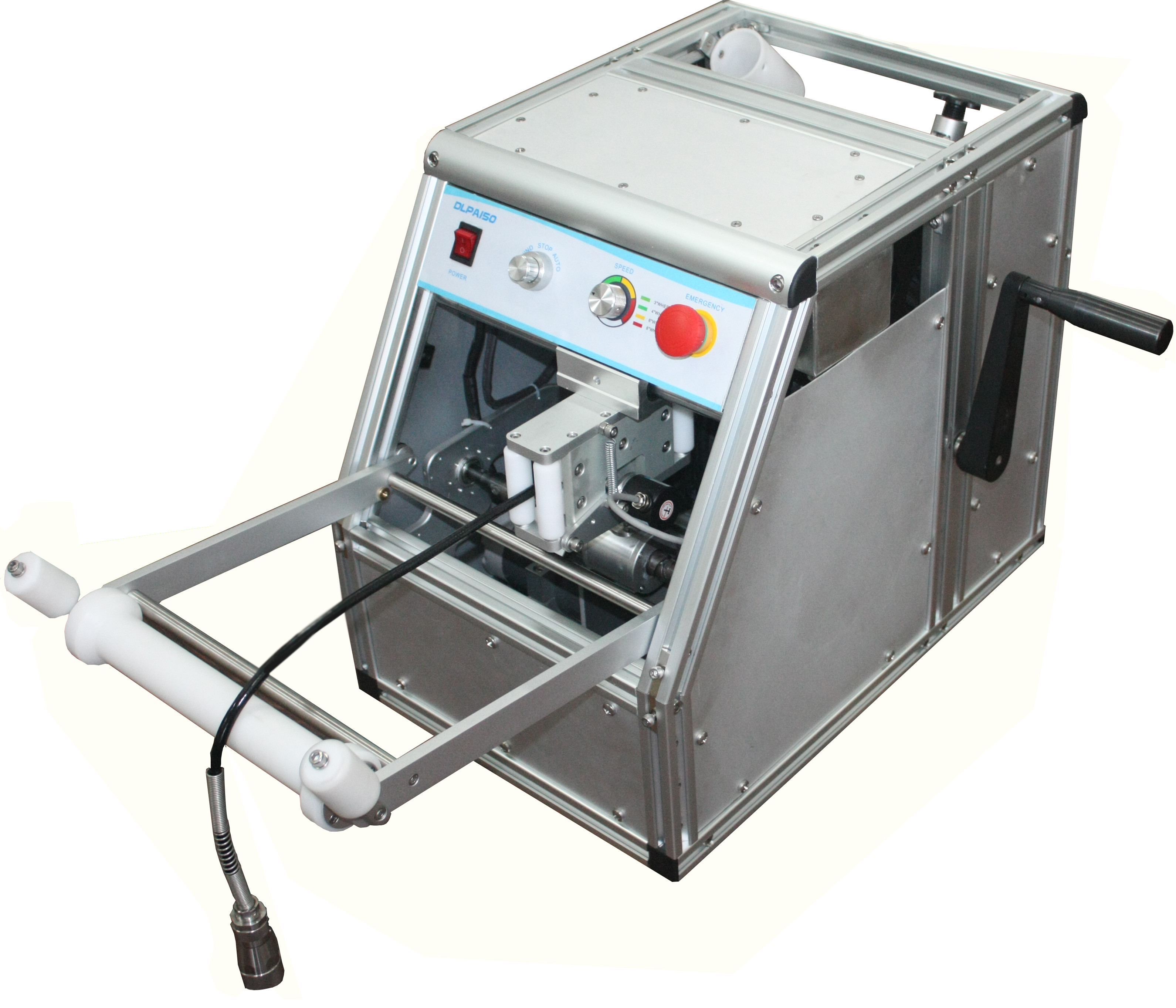

Automatic Cable Drum DLPA300		6 cores cable, Weight reduction 50%, Cost and failure rate significantly reduced Standard length: 200m,max. 300m Automatic cable drum

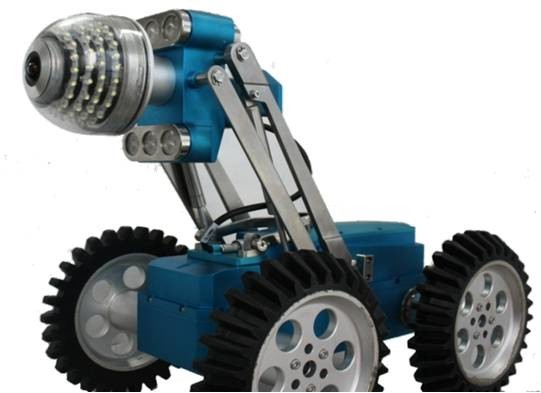

Cralwer TVS-800		Working temperature: -10ºC~50ºC Suitable pipe diameter: 250mm~2000mm Drive: two DC motor Elevator: electric elevator Inclination: mesurement scope ±45 degree, pecision 0.1 degree Speed: adjustable speed, max. 32m/min Direction: forward, backward, left, right Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light. Climbing: max. climb degree about 50° according to diffrerent pipe status Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving

Pipe Penetrating Radar Configuration

Remote Control APP.
Install our MK3 Remote Control APP. on your cellphone or Pad developed by Android system, you can remote control MK3 control unit.

Founded in 2006, Wuhan Trio-Vision Technology Co., Ltd. (hereinafter called "TVS") Is the exploiter in Chinese underground pipe inspection equipment industry. The company has been specialized in developing, manufacturing, sales and technology service of urban drainage pipe inspection and online inspection. With rapid development in recent years, the company has been the celebrated enterprise in underground pipe inspection product developing and manufacturing in both domestic and overseas.

Currently we have distributors in USA, UK, and The Netherlands.

TVS is always aiming at advanced inspection technology in the world, the company succesively pushed out portable pipe camera (manhole camera) in 2006, pipe robot (CCTV pipe inspection system) in 2008, and pipe sonar inspection system in 2010, TVS also applied all kinds of patents, and software copyright. As the exploiter of drainage pipe inspection technology in China, TVS is devoted to localization of underground inspection equipments, providing reliable CCTV pipe inspection equipment, pipe maintenance vehicle, pipe flow monitoring system and correspondent services, and supplying the customer one-stop complete equipment solution.

TVS is strictly with product quality, performance, carries out the theory of "concentrations achieves professions, innovation wins the preemptive opportunities", concentrate developing, manufacturing, and sales into complete, the company annually manufactured and sold over 200 units on three series inspection products, the sales network is all over the country, and get highly appraise from the customer. TVS has its own import and export business license, its products sold far to America, UK, Germany, Australia, East Asia etc. At the same time, the company has set up a complete customer service system, owned its professional customer service team to guarantee the equipment use normally.
