Underground 300-2000mm CCTV Pipe Inspection Equipment With LCD Screen

CCTV Pipe Inspection Equipment is mainly used in electricity, municipal, traffic, petrifaction, construction and it is suitable for inspecting the boiler, pipeline, underground cable channel and places will do harm to human or forbid man-entry. The situation inside the pipe will be recorded and displayed on the monitor screen; it also facilitates working personnel for effective observation, detection, quick analysis and diagnosis.

CCTV Pipe Inspection Equipment Features:

1. Anti-fogged camera lens

2. 360 ° rotate of camera

3. Windows laptop/controller

4. Brightless adjustable

CCTV Pipe Inspection Equipment Technical Parameter

Pan&Tilt Camera JT2000		1,360 degree, no limited rotate 2,The lens heating can prevent fog 3,Camera light can be adjusted 4,Maximum Brightness upgrade 50%, More suitable for small diameter 5,Optional Laser, calibrate defect size

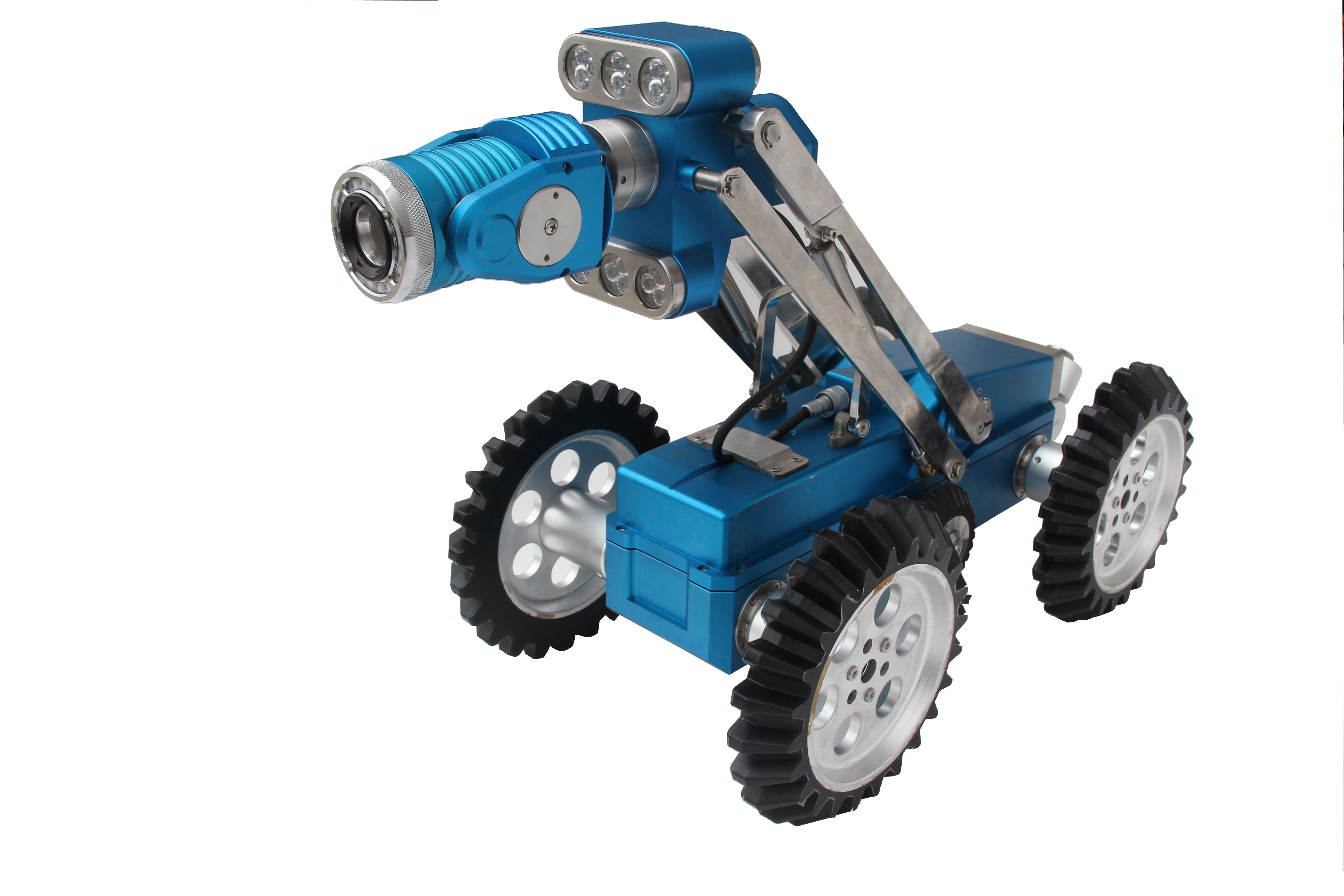

Cralwer TVS-800		1. Working temperature: -10ºC~50ºC 2. Suitable pipe diameter: 50mm~2000mm 3. Drive: two DC motor 4. Elevator: electric elevator 5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree 6. Speed: adjustable speed, max. 32m/min 7. Direction: forward, backward, left, right 8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light. 9. Climbing: max. climb degree about 50° according to diffrerent pipe status 10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
Manual Cable Drum DLPM120		1,Manual cable drum 2,standard length: 120m
Controller MK3		1. Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg 2,Win7 system, 128GB SSD, Record video in site, 100+ hours video can be saved. 3,Camera position, elevator position in Graphs 4,Inclination report in site. 5,System status, work parameter can be query.

System Configuration
