    Long Range CCTV Pipe Inspection Equipment For Electricity 125-2000mm

    Ask Lasest Price
    Brand Name : Trio-Vision
    Model Number : TVS-15
    Certification : CE,FCC, ISO9001
    Payment Terms : T/T
    Supply Ability : 20units per month
    Delivery Time : 4-8 weeks
    Price : Negotiable
    • Product Details
    • Company Profile

    Long Range CCTV Pipe Inspection Equipment For Electricity 125-2000mm

    Long Range CCTV Pipe Inspection Equipment For Electricity 125-2000mm


    CCTV Pipe Inspection Equipment Introduction


    CCTV Pipe Inspection Equipment is a newly designed crawler system, specially for US, UK and European market. It can inspect pipe diameter from 125-2000mm, use only one crawler to inspect the most of te pipes, reduce the cost. It is compoposed of a crawler, pan&tilt camera, automatic cable drum and control units. The crawler can match different types of cameras(I.e. pan & tilt camera, axial camera, fish-eye camera) according to diffrerent requirements.


    The system is a product designed on the basis of industrial Windows system. During the testing, defect pictures are acquired; afterward, a testing report can be obtained immediately. In addition, a pipeline gradient curve can be obtained in time during the testing to determine the sediment condition inside pipeline. Fish-eye lens is used, integrating "PipePano pipeline panorama testing video analysis software" , so as to generate the panorama image of inner wall of the pipeline, analyze and determine more finely and quantitatively (measurement on pipe diameter, crack width and so on).


    CCTV Pipe Inspection Equipment Features:


    1. High Definition Camaera, 1920*1080P

    2. Portable control unit

    3. Windows operation system

    4. Powerful crawler drive

    5. Interchangeable parts

    6. Laser scanning

    7. Remote control App.


    CCTV Pipe Inspection Equipment Configuration


    Standard ConfigurationOptional Parts
    TVS15 crawlerCAM-70 camera
    CAM-90 pan & tilt cameraJT360 fish-eye camera
    Automatic cable drumManual cable drum
    MK4 control unitWheel support
    Manhole hook, tool box and other accesories10" wheel

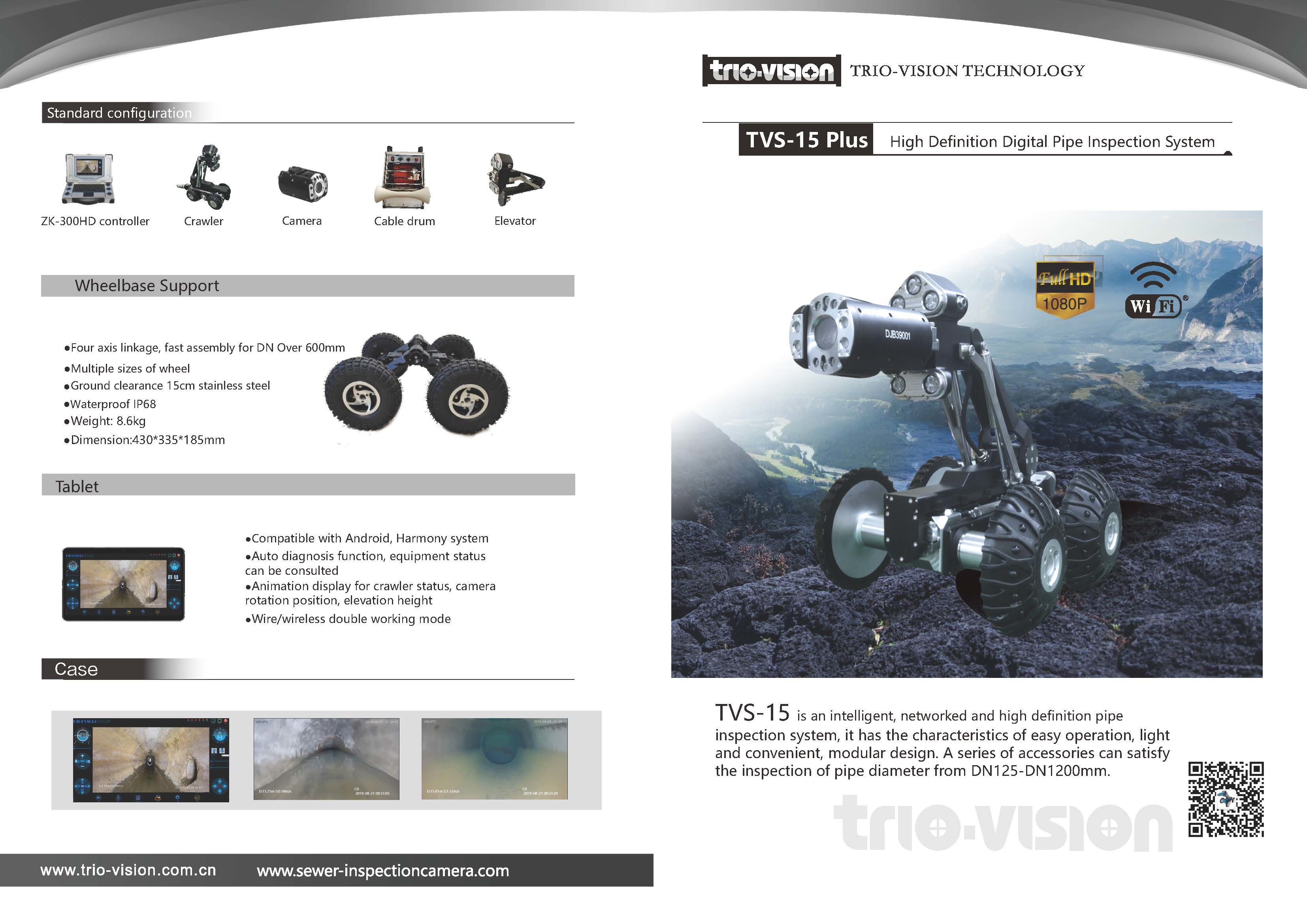

    TVS-15 High Definition Underground Main Pipe Inspection Camera , CCTV Sewer Pipe Inspection Equipment Robot


    Technical Parameter

    Control Unit MK4

    Long Range CCTV Pipe Inspection Equipment For Electricity 125-2000mm



    1. Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
    2. Win10 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
    3. Camera position, elevator position in Graphs
    4. Inclination report in site.
    5. System status, work parameter can be query.


    Pan&Tilt Camera CAM-90TVS-15 High Definition Underground Main Pipe Inspection Camera , CCTV Sewer Pipe Inspection Equipment Robot



    1. Rotation: 360 degree horizontal, 270 degree vertical

    2. 120x zooming, 10:1 optical, 12:1 digital

    3. Auto focus, manual adjustment is allowed

    4. Digital hidh definition, 1920*1080P

    5. Camera lens anti-fogged
    6. Laser scanning the pipe diameter and distortion

    7. Laser gauge to measure the defect size
    8. Camera light can be adjusted to adapt different pipes.

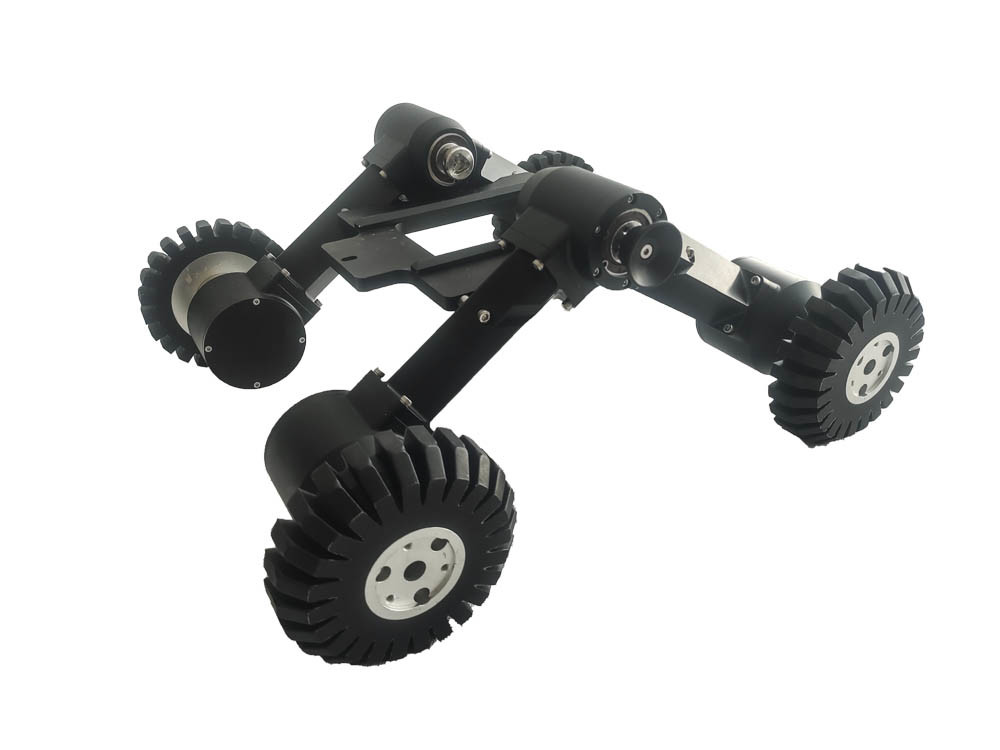

    Cralwer TVS-15

    TVS-15 High Definition Underground Main Pipe Inspection Camera , CCTV Sewer Pipe Inspection Equipment Robot


    1. Waterproof to IP68
    2. Working temperature: -10ºC~50ºC
    3. Suitable pipe diameter: 125mm~2000mm
    4. Drive: two DC motor, six wheels

    5. Sonde location: 33kHz
    6. Inclination: mesurement scope ±45 degree
    7. Climbing: max. climb degree about 50° according to diffrerent pipe status
    8. High definition rear sight camera and light: inspect crawler backwards and cable retreiving


    Automatic Cable Drum DLPA200HD

    TVS-15 High Definition Underground Main Pipe Inspection Camera , CCTV Sewer Pipe Inspection Equipment Robot



    1. LCD display panel

    2. Three kinds of working mode: auto, manual and auto retrieving only.

    3. Standard cable length: 200m

    4. Built-in wifi module, wireless tranmission

    5. Cable counter meter and auto layering

    6. Emergency stop

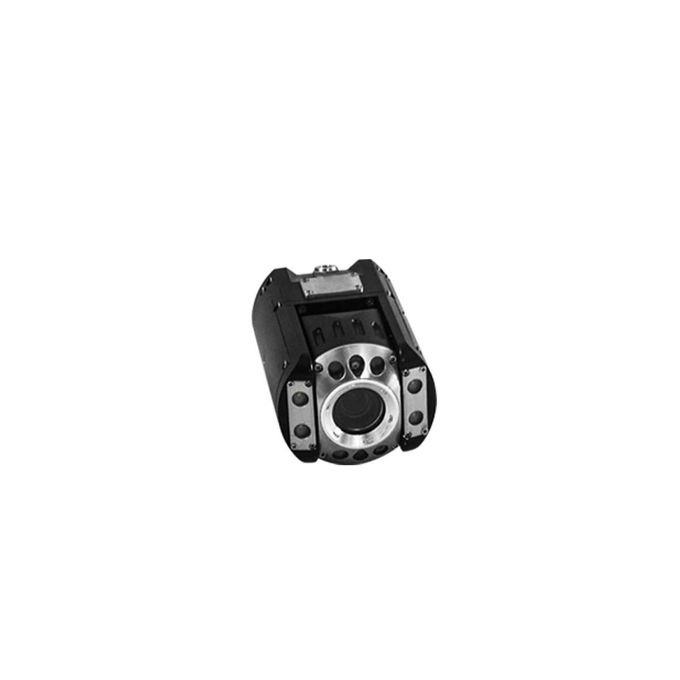

    Fish-eye camera JT360

    TVS-15 High Definition Underground Main Pipe Inspection Camera , CCTV Sewer Pipe Inspection Equipment Robot



    1. View360 degree sight inside the pipe.
    2. 92 PCS high-light LED lamps, illumination reaches to 200lm
    3. Resolution: 3000k pixel, high quality picture.
    4. Waterproof: IP68, workable 10 meters underwater.
    5. The videos and pictures recorded by MK3 full-view camera can spread full-range picture inside the pipe by PanoProfile 3D software, and generate 2D profile picture, in order to realize accurate measurement of pipe defects, install 3D mould, and create inspection report.


    Wheel support

    Long Range CCTV Pipe Inspection Equipment For Electricity 125-2000mm


    assembed on the crawler to inpsect pipe diamter above 1000mm, equipped with 8" wheels or 10" wheels.



    Long Range CCTV Pipe Inspection Equipment For Electricity 125-2000mmLong Range CCTV Pipe Inspection Equipment For Electricity 125-2000mm
