Pitch Angle Sensors CCTV & Sonar Inspection System 100-6000mm 512Hz

Trio-Vision Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Pitch Angle Sensors CCTV & Sonar Inspection System 100-6000mm 512Hz from wholesalers

    Buy cheap Pitch Angle Sensors CCTV & Sonar Inspection System 100-6000mm 512Hz from wholesalers
    • Buy cheap Pitch Angle Sensors CCTV & Sonar Inspection System 100-6000mm 512Hz from wholesalers

    Pitch Angle Sensors CCTV & Sonar Inspection System 100-6000mm 512Hz

    Ask Lasest Price
    Brand Name : Trio-Vision
    Model Number : TVS-6000
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per months
    Delivery Time : 4-8 weeks
    • Product Details
    • Company Profile

    Pitch Angle Sensors CCTV & Sonar Inspection System 100-6000mm 512Hz

    Pitch Angle Sensors CCTV & Sonar Inspection System 100-6000mm 512Hz

    CCTV & Sonar Inspection System Features:

    • Friendly software interface to operate readily
    • Data and images saved in the hard disc
    • Built-in roll and pitch angle sensors
    • Built-in cable counter interface
    • Inspect pipe profile automatically


    Sonar Probe Technical Parameter

    Acoustic Parameter
    Acoustical frequency
    2MHz

    Wave width
    1.1°(cone wave beam)

    Lateral resolution

    0.5mm (Pipe radius 125mm)
    Max. inspection radius12m
    Transmit pulse width4~20us

    Receiving wave width
    500KHz

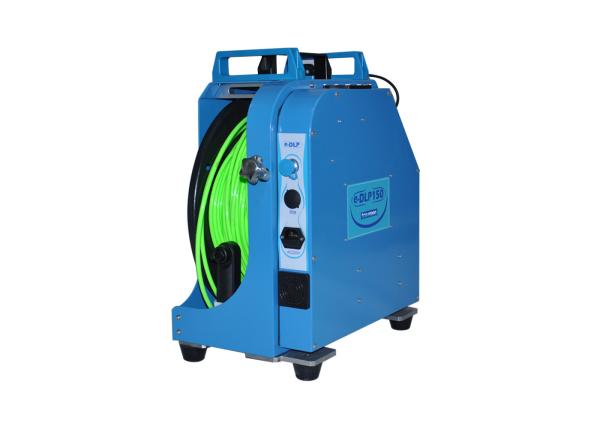

    Manual Cable Drum:
    Counter: high precision coder( ±0.1m), cable length calculation.
    Layering: manual layering
    Waterproof: IP63
    Pitch Angle Sensors CCTV & Sonar Inspection System 100-6000mm 512Hz

    SonarProf Pipe Sonar Professional Analysis Software
    Support pipe cross-section in real-time representation and a full 360-degree profile extendable (IMG. 1)
    Automatically generate pipe 3-D modeling and view debris and defect inside clearly (IMG. 2)
    Support debris volume calculation & analysis data to be plotted easily (IMG. 3)
    Automatic reporting for high efficiency report preparation (IMG. 4)

    Pitch Angle Sensors CCTV & Sonar Inspection System 100-6000mm 512HzPitch Angle Sensors CCTV & Sonar Inspection System 100-6000mm 512HzPitch Angle Sensors CCTV & Sonar Inspection System 100-6000mm 512Hz
