    125mm Sonar Pipe Inspection

    Ask Lasest Price
    Brand Name : Trio-Vision
    Model Number : TVS-6000
    Supply Ability : 10 sets per months
    Delivery Time : 4-8 weeks
    Price : Negotiable
    • Product Details
    • Company Profile

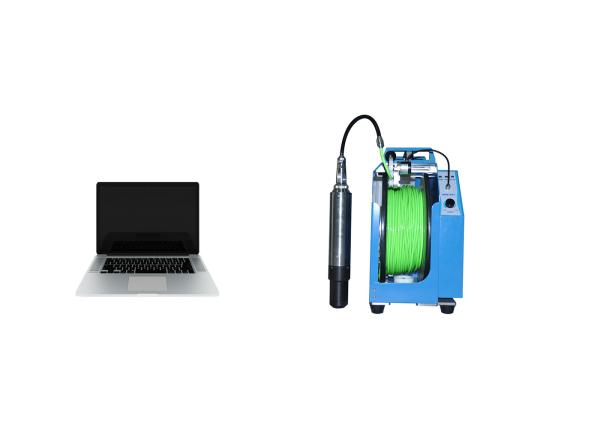

    125mm Sonar Pipe Inspection

    125mm Sonar Pipe Inspection


    Sonar Pipe Inspection Introduction


    TVS-6000 Sonar Pipeline Inspection System detects and pinpoints targets underwater by means of the principle of wave reflection. It, therefore, can perform pipeline inspection filled with liquid to determine the information of crack and debris in the pipe; and it is the most advanced device for pipeline inspection and assessment.

    Sonar Pipe Inspection Features:

    Built-in roll and pitch angle sensors
    Built-in cable counter interface
    Inspect pipe profile automatically

    Sonar Pipe Inspection Technical Parameter


    Acoustic Parameter
    Acoustical frequency
    2MHz

    Wave width
    1.1°(cone wave beam)

    Lateral resolution

    0.5mm (Pipe radius 125mm)
    Max. inspection radius12m
    Transmit pulse width4~20us

    Receiving wave width
    500KHz



    Manual Cable Drum:
    Counter: high precision coder( ±0.1m), cable length calculation.
    Layering: manual layering
    Waterproof: IP63


    SonarProf Pipe Sonar Professional Analysis Software
    Support pipe cross-section in real-time representation and a full 360-degree profile extendable (IMG. 1)
    Automatically generate pipe 3-D modeling and view debris and defect inside clearly (IMG. 2)
    Support debris volume calculation & analysis data to be plotted easily (IMG. 3)
    Automatic reporting for high efficiency report preparation (IMG. 4)
