    CCTV and Sonar Sewer/Water Pipe Inspection System Amphibious Inspection Rotate Camera

    Ask Lasest Price
    Brand Name : Trio-Vision
    Model Number : TVS-8000
    Payment Terms : L/C, T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    CCTV and Sonar Sewer/Water Pipe Inspection System Amphibious Inspection Rotate Camera

    CCTV and Sonar Sewer/Water Pipe Inspection System Amphibious Inspection Rotate Camera

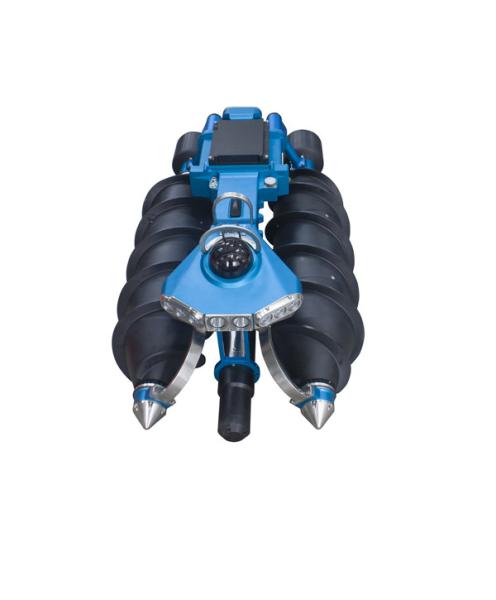

    360 Degree Rotate-Camera for CCTV and Sonar Sewer/Water Pipe Inspection System adopts spiral propulsion structure, which is suitable for working in various complex environments such as water surface, mud, swamp and so on. Equipped with 360° pan-tilt-zoom camera, it can inspect with high-definition images. The high brightness LED array is suitable for large pipes, canals and box culverts. It can be equipped with sonar probe to display images underwater surface, thus detecting the cross-section and silt depth under water pipes and canals over-water at the same time.


    Features:

    1. Used for both water and non-water pipes

    2. 360 degree pan-tilt-camera

    3. Sonar inspection available

    4. Good for long distance


    System Configuration

    Standard ConfigurationOptional Parts
    Amphibious robotLizard for small size
    Motorized cable reelMain controller
    Remote controllerPortable cart
    SoftwareRemovable lithium battery
    Sonar probe

    Technical Parameter

    Amphibious robotCCTV and Sonar Sewer/Water Pipe Inspection System Amphibious Inspection Rotate Camera

    1. suitable for pipe DN600 and above

    2. HD pan-tilt-zoom camera

    3. Spiral propulsion, overwater, mud, silt, swamp and other complex fields

    4. Combined with sonar system for underwater inspection

    5. 8 sets high-intensity LED, inspection especially for large culvert

    6. Large capactiy lithium battery removable

    7. Double DC brushless motor, strong power

    8. Good for long distance

    9. Laser measurement of water level

    10. Overall dimension: 900*520*310mm

    11. Weight: 18kg

    Motorized cable reelCCTV and Sonar Sewer/Water Pipe Inspection System Amphibious Inspection Rotate Camera

    1. Base station architecture, network cable, WIFI, special line and other signal transmission modes

    2. Video signal and control command, lossless and delay free transmission

    3. Tensile floating cable, auto winding and traversing

    4. Built-in battery, and removable

    5. Dimension: 510*400*450mm

    6. Weight: 26.5kg

    7. Cable stanard length: 200m, 300m optional

    Remote controller


    CCTV and Sonar Sewer/Water Pipe Inspection System Amphibious Inspection Rotate Camera

    1. Simple, convenient and flexible operation

    2. Self diagonosis function, status visible

    3. Robot walking posture display

    4. Wireless/wired dual working mode

    5. Compass indicates the direction

    6. Weight 0.5kg

    Sonar probe


    CCTV and Sonar Sewer/Water Pipe Inspection System Amphibious Inspection Rotate Camera

    Sonar diameter: 70mm, length: 370mm

    Inspection range: 125mm-6000mm

    Acoustic frequency: 2Mhz

    Wave width: 0.9°

    Receiving wave width: 500KHz

    Sampling rate: 60MHz

    Built-in roll and pitch angle sensor

    Inspection radius: 125, 187, 250, 375, 500, 750, 1000, 1500, 2000, 3000, 4500, 6000

    SoftwareCCTV and Sonar Sewer/Water Pipe Inspection System Amphibious Inspection Rotate CameraOperation software to control the robot and camera movements.
