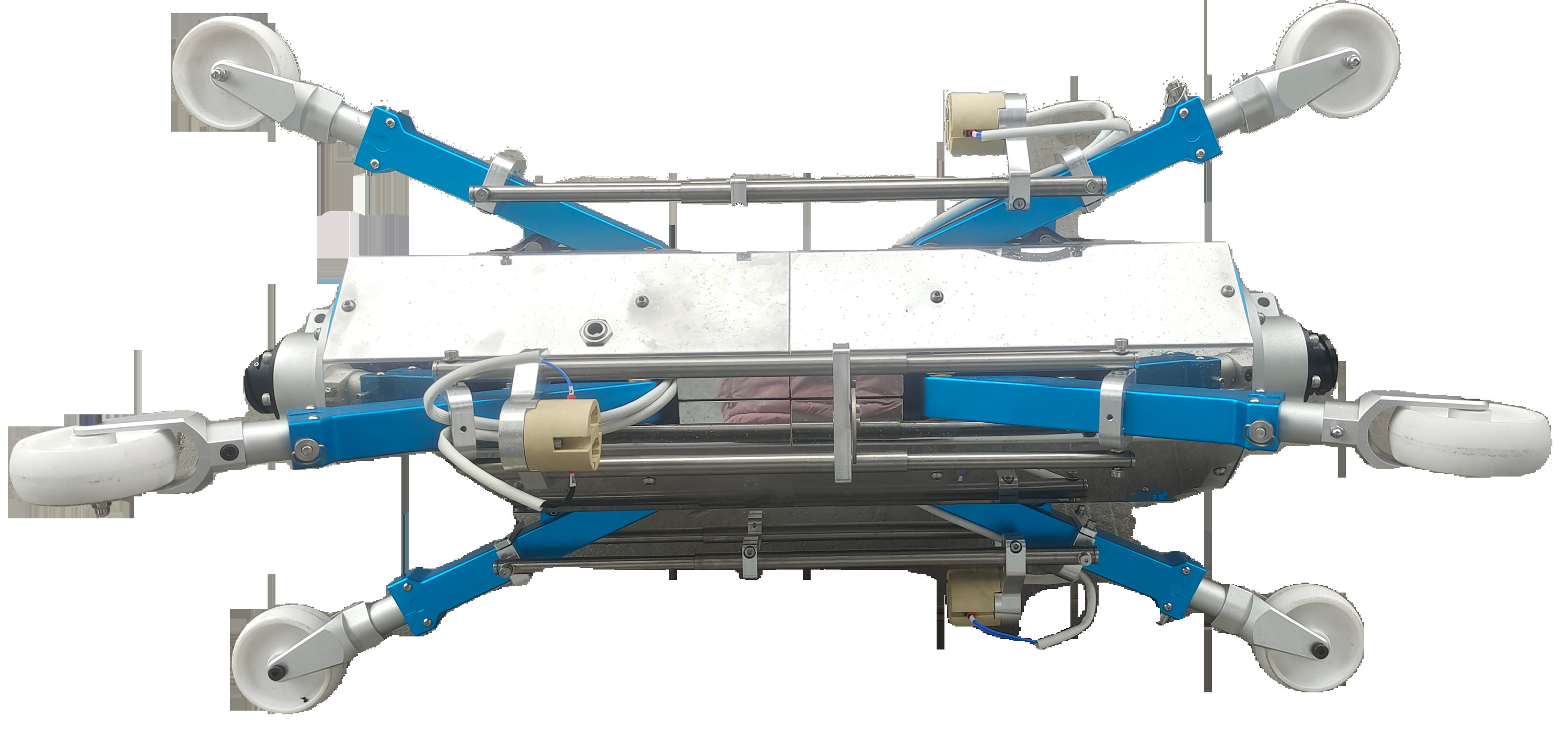

Small light source

1. For pipe diameter: DN150-800.

2. Light chain consisting of 2 units each with 4 UV high power lamps, total 8 lamps, power levels: 400/500/650W,total power 5200W.

3. 1 sensor for air temperature measurement; 4 sensors for at the inner liner surface(IR-sensor);

4. Each light chain can replace and install in random, no requirement of installation sequence.

5. The front plug-in heat-resistant camera, equipped with high power LED light.

6. Installation and adjustment of light chain wheels and legs is easy and convenient, to meet the requirement of quick replacement for different pipe diameters and different shapes of pipes in field.

7. Pre-set the ignition intervals of UV lamp, the system will control lamp ignition and flame-out automatically according to the pre-set time. You can also choose manual control to handle the complicated field situation.

Large light sources

1. For pipe diameter: DN600-1600.

2. Light chain consisting of 2 units each with 4 UV high power lamps, total 8 lamps, power levels:1000/1200/1500W, total power 12000W.

3. 1 sensor for air temperature measurement; 3 sensors for at the inner liner surface(IR-sensor);

4. The light chain wheel set and legs are driven by motor, can stretch out and draw back in pipes automatically, to finish operation in large pipes quickly.

5. The front plug-in heat-resistant camera, equipped with high power LED light.

6. Installation and adjustment of light chain wheels and legs is easy and convenient, to meet the requirement of quick replacement for different pipe diameters and different shapes of pipes in field.

Cable reel

1.Cable: standard length 150m, heat resistant, UV resistant, for control of curing, video signal transmission, light source driving.

2.Cable reel: transparent design for outer rack, reduce weight, convenient for repair, with inner lighting system.

3.Back eye camera: for inspection of liner material.

Control unit

1.PLC controlled switch gear for operating the cable drum and UV light chain. Operation by the innovative Siemens touch screen.

2.Windows operation system. All curing information and videos are visible. Display and record the following data: speed, pressure, liner surface temperature, light chain status and length, data can be exported.

3.Computer with software and 3 monitors, including:

1 x 15” TFT monitor for operation and control of the entire system;

1 x 17” TFT monitor for image transmission of camera;

1 x 22” TFT monitor for software and operation of the entire system.

1.High power blower, power: 1400m3/h,nominal power: 18.5kW,50Hz, max. pressure 0.7bar.

2.Deep-developed control system, control the blower by touch screen of control cabin.

3.Plug-in switch connecting with cable drum.

4.Software: Windows system, pressure visualization and calibration, control the liner expansion,.

5.Built-in filter and relief valve, oil free, air cooling.

Ties

40KW, voltage 400V,frequency: 50Hz

Transportation and deployment
